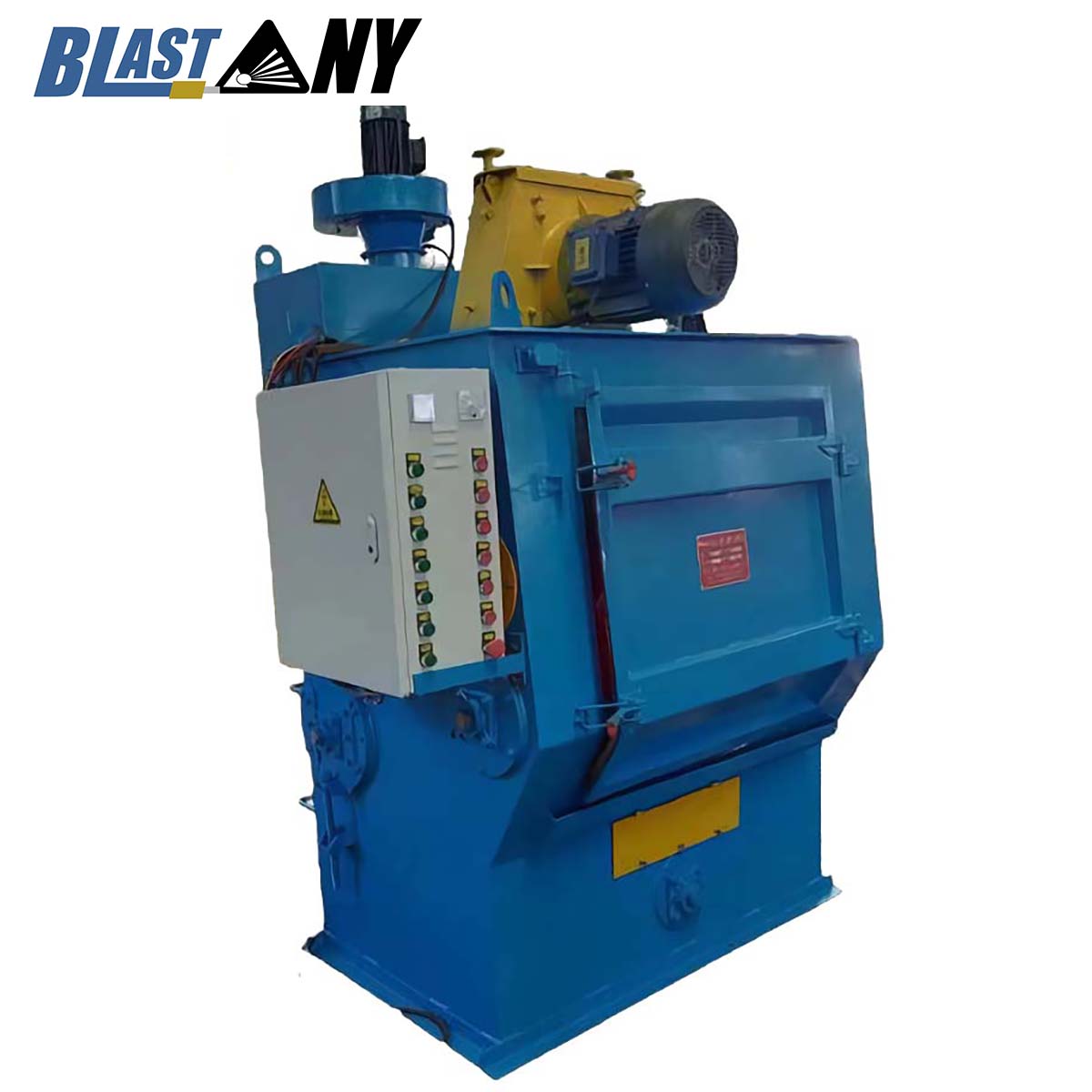

Lub Crawler roj hmab siv hom tua blasting tshuab
Product details

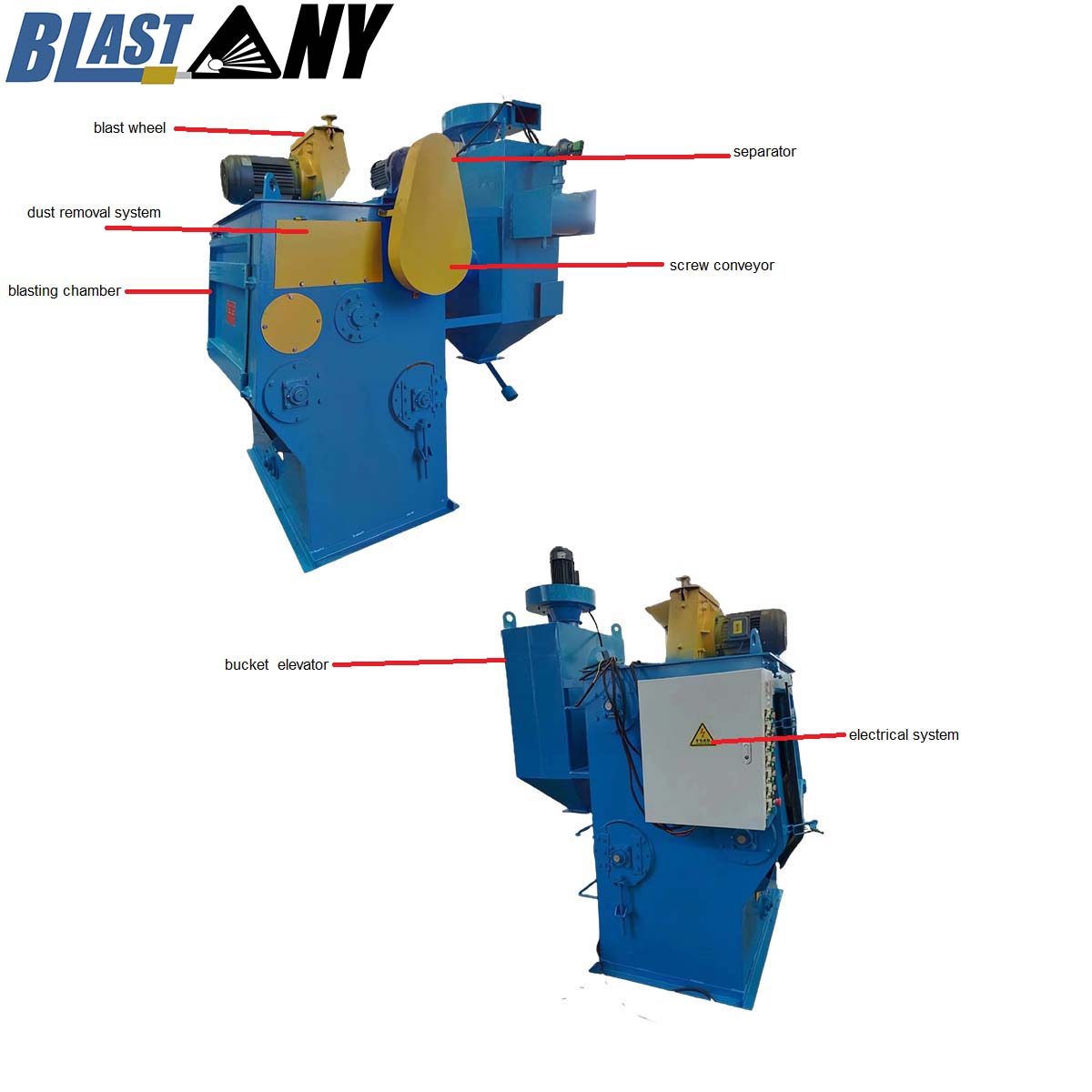

Lub tshuab no yog tsim los ntawm blasting chamber, blasting log, thoob of elevator, ntsia hlau conveyor, separator, plua plav tshem tawm, hluav taws xob system, thiab lwm yam.
Daim ntawv thov
1, Kev Lag Luam Kev Lag Luam Kev Lag Luam Txhaj Tshuaj Txhaum Cai:
Cov khoom siv tsheb laij teb, cov twj tso dej, cov khoom siv ua liaj ua teb, thiab lwm yam.
2, Kev lag luam tsheb tua blasting:
Cav thaiv, lub tog raj kheej taub hau, tawg nruas, thiab lwm yam.
3, Tsev & infrastructure kev lag luam Txhaj tshuaj tua blasting:
Cov qauv hlau, tuav, kis tau tus mob & TV yees, thiab lwm yam.
4, Kev Lag Luam Kev Lag Luam Txhaj Tshuaj Txhaum Cai:
blocks, qag & crankshafts, diesel cav Cheebtsam, thiab lwm yam.
5, Roj & roj kev lag luam Deg npaj:
Cov kav dej txheej nrog ntawv, cement, epoxy, polythene, thee tar, thiab lwm yam.
6, Kev lag luam mining txhaj tshuaj blasting:
Bulldozer, dumpers, crushers, av sau equipments, thiab lwm yam.
7, Foundry kev lag luam txhaj tshuaj blasting:
Tsheb, tsheb laij teb, scooter & lub voj voog lub cev, thiab lwm yam.
8, Aviation kev lag luam txhaj tshuaj peening:
Dav hlau cav, hniav, kiv cua, turbine, hubs, av iav Cheebtsam, thiab lwm yam.
9, Cov pa phem tswj cov cuab yeej siv: Foundry, carbon dub, rauv, cupola, thiab lwm yam.
10, Ceramic / paver kev lag luam Daim Ntawv Thov:
Antiskid, footpath, tsev kho mob, tsoom fwv buildig, pej xeem chaw, thiab lwm yam.
Packing & Delivery
Installation thiab Warranty:
1. Kev teeb tsa thiab commissioning teeb meem:
Peb yuav xa 1-2 tus kws tshaj lij los pab nrog kev teeb tsa lub tshuab thiab commissioning, cov neeg siv khoom them rau lawv daim pib, tsev so thiab zaub mov, thiab lwm yam Cov neeg siv khoom xav tau npaj 3-4 tus neeg ua haujlwm txawj thiab npaj cov tshuab thiab cov cuab yeej.
2. Lub sijhawm lav:
12 lub hlis txij li hnub ua haujlwm tiav, tab sis tsis pub dhau 18 lub hlis txij li hnub xa khoom.
3. Muab tag nrho cov ntaub ntawv Askiv:
nrog rau lub hauv paus kos duab, phau ntawv khiav hauj lwm, daim duab hluav taws xob, hluav taws xob phau ntawv thiab phau ntawv tu, thiab lwm yam.
JDQ326 - Technical Parameters
| Junda Crawler Hom Txhaj Blasting Tshuab | |
| Yam khoom | specification |
| Qauv | JD-Q326 |
| Kev muaj peev xwm ua tau | ≤ 200KG |
| Qhov hnyav tshaj plaws rau ib qho workpiece | 15 KG |
| Muaj peev xwm thauj khoom siab tshaj plaws | 200 KG |
| Steel txhaj koob | 0.2-2.5 hli |
| Xaus disc diam | 650 hli |
| Taug qab aperture | 10 hli |
| Track zog | 1.1 kwb |
| Track ceev | 3.5r / min |
| Xuab zeb blasting tus nqi | 78 m/s |
| Tua blasting kom muaj nuj nqis | 110KG / min |
| Impeller txoj kab uas hla | 420 hli |
| Impeller ceev | 2 700rp |
| Lub zog impeller | 7,5 kwv |
| Lifting peev xwm ntawm hoist | 24 T/h |
| Lifting tus nqi ntawm hoist | 1.2m / s |
| Hoist zog | 1.5 kwb |
| Tus nqi sib cais | 24 T/h |
| Separator cua ntim | 1500 m³ / h |
| Main ventilation ntim ntawm precipitator | 2500 m³ / h |
| Plua plav collector zog | 2.2 kwb |
| Plua plav collector lim khoom | Lim lub hnab |
| Thawj loading steel txhaj tshuaj kom muaj nuj nqis | 200 KG |
| Kev xa tawm ntawm lub hauv qab ntsia hlau conveyor | 24 T/h |
| Compressed cua noj | 0.1 m³ / min |
| Tag nrho qhov hnyav ntawm cov khoom siv | 100 KG |
| Khoom siv qhov ntev, dav thiab qhov siab | 3792 × 2600 × 4768 hli |
| Tag nrho lub zog ntawm cov khoom siv | 12.6 KWG |
