ceramic pob
Product Description
Junda ceramic pob hais txog alumina hmoov raws li cov khoom siv raw, tom qab cov khoom xyaw, sib tsoo, hmoov (pulping, av), sib sau, ziab, tua thiab lwm yam txheej txheem tsim, feem ntau yog sib tsoo nruab nrab thiab siv pob zeb pob zeb. Vim hais tias cov ntsiab lus ntawm alumina yog ntau tshaj 92%, nws tseem hu ua high aluminium pob. Qhov tshwm sim yog pob dawb, txoj kab uas hla ntawm 0.5-120mm.
Tuam txhab Profile
Nyob rau hauv Jinan City, Shandong Province, Jinan Junda Industrial Technology Co., Ltd. muab kev hnav zoo heev thiab kev cuam tshuam rau kev siv mining thiab kev lag luam, tsom mus rau kev txhim kho ntawm hnav-resistant alumina ceramics. Nrog ntau tshaj kaum xyoo ntawm kev paub thiab 200 tus neeg ua haujlwm txawj ntse, peb tsim ntau tshaj 2000 tonnes ntawm alumina ceramics thiab cov khoom muaj feem xyuam txhua lub hlis.
Cov txheej txheem ntau lawm
Raws li qhov loj ntawm txoj kev dov thiab tshuab nias txoj kev, 0.5-25mm feem ntau dov pob loj pob 25-90mm feem ntau yog tshuab nias pob.
Tshuab xovxwm pob txheej txheem luv luv: hmoov thiab ntau yam additives tom qab sib tov tshuaj tsuag granulation, thiab ces cov hmoov ntxiv rau cov hlau pwm prefabricated rau hauv cov khoom, thiab ces lub billet tom qab tso tawm ntawm txias isostatic nias kho kom tau lub pob billet, siv cov cov txheej txheem no los npaj cov billet tshwm sim los ntawm kev kub ceev, sintered ceramic pob siab ceev, zoo zoo. Nws feem ntau yog siv los tsim cov khoom loj thiab cov khoom sib tsoo zoo nrog txoj kab uas hla ntau dua 10mm.
Kev taw qhia luv luv ntawm cov txheej txheem dov pob: cov hmoov thiab dej, cov nplaum, cov yas, cov roj nplaum, thiab lwm yam, tau ntxiv rau hauv cov av sib xyaw ua ke los tsim cov av nkos los ntawm cov khoom siv stale yas av nkos, rau hauv cov av nkos extruder extrusion ua los ntawm strips, thiab txiav ntev thiab txoj kab uas hla ntawm cov av nkos, thiab ces mus rau hauv lub pob dov tshuab ua billet.
Khoom siv:
Sib tsoo, polishing, thiab lwm yam

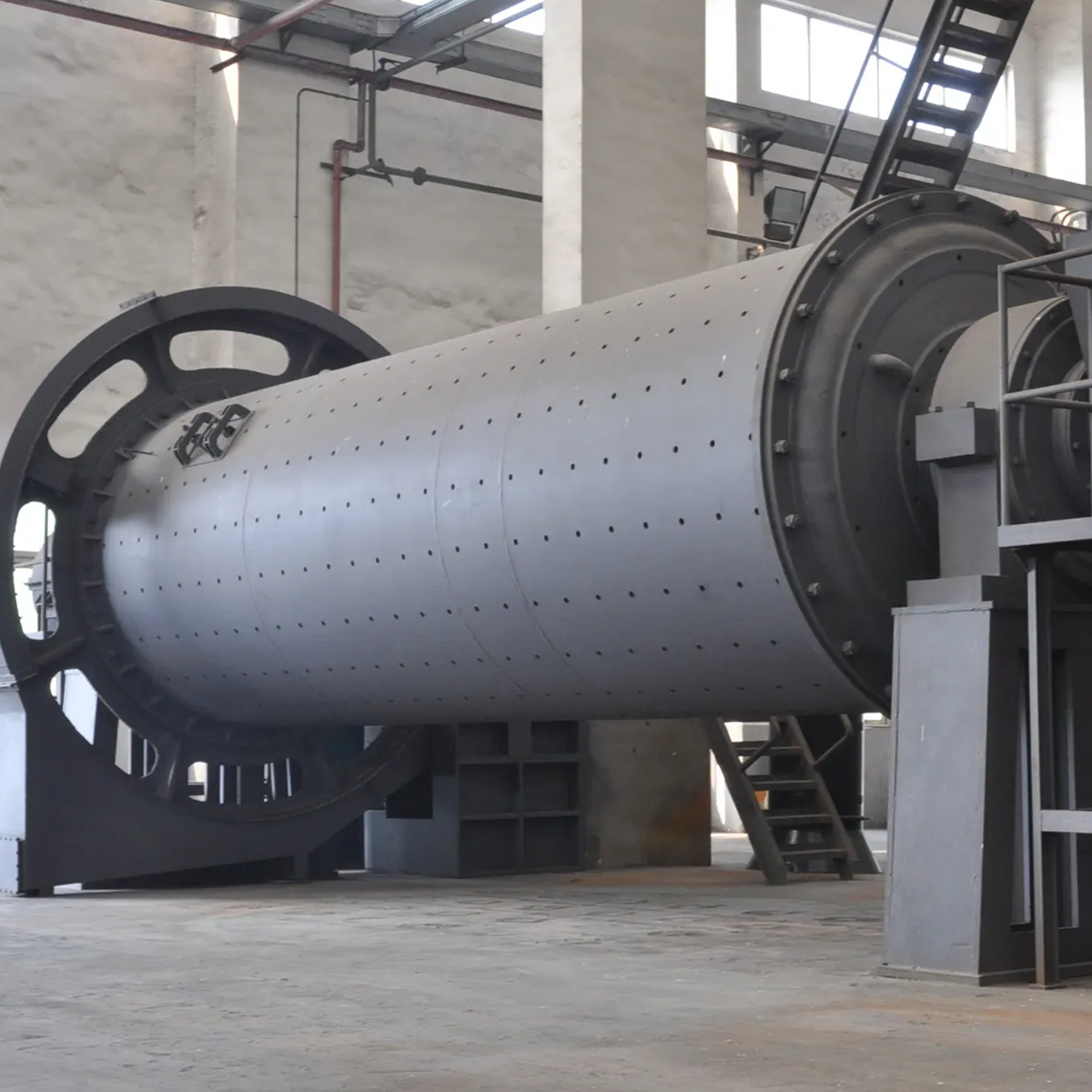

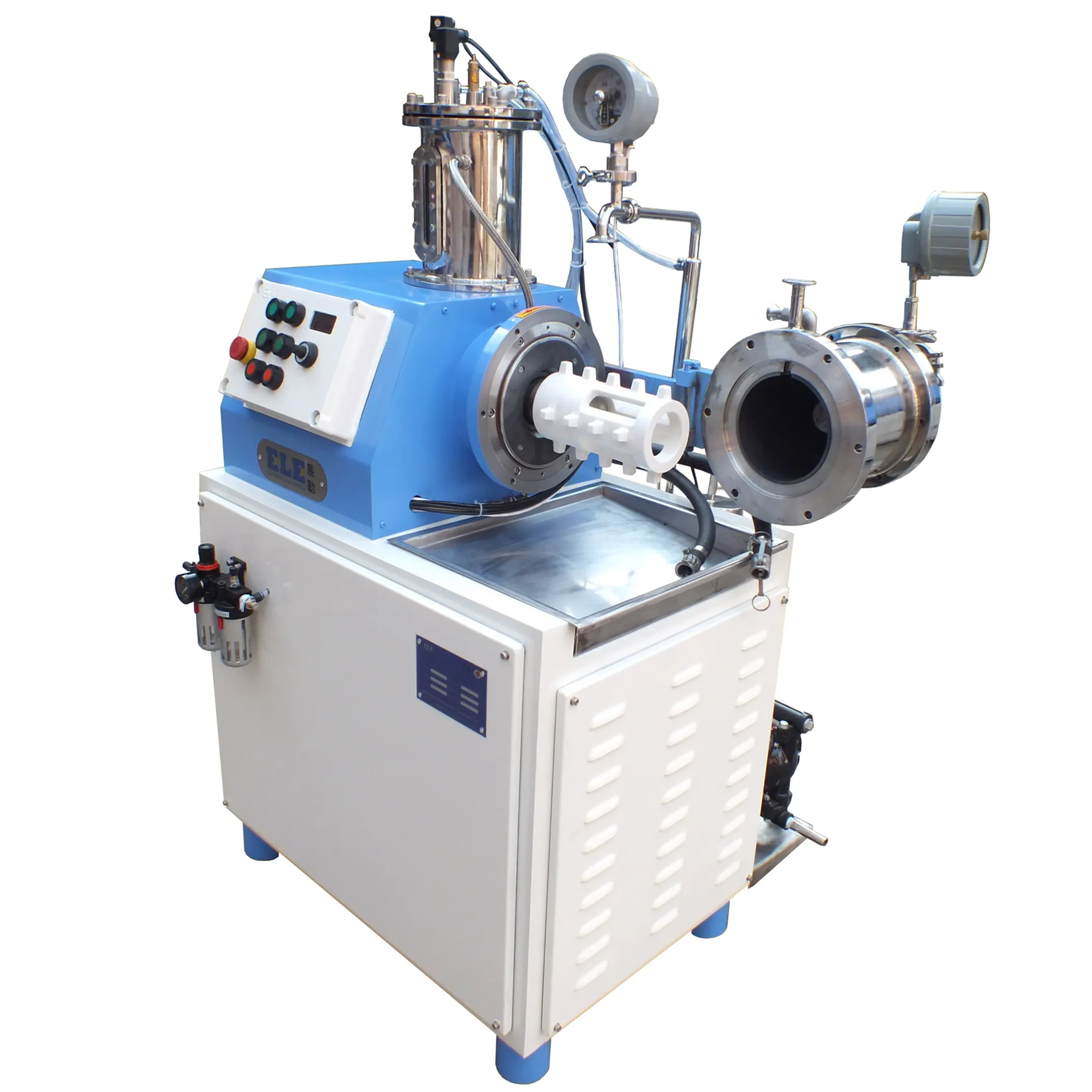

Nws yog dav siv nyob rau hauv precision processing thiab sib sib zog nqus ua ntawm txhua yam ceramics, enamel, iav thiab tuab thiab tawv cov ntaub ntawv nyob rau hauv tshuaj nroj tsuag, raws li lub sib tsoo nruab nrab ntawm pob zeb, tank zeb, vibration zeb thiab lwm yam zoo mills.
Khoom nta
hnav me me, siab hardness, corrosion kuj, cuam tshuam tsis kam, kev lag luam thiab cov tswv yim.
(1) Kev hnav tsis kam: hnav tsis kam ntawm alumina sib tsoo pob porcelain zoo dua li cov pob plooj (porcelain) zoo tib yam. Nws tuaj yeem txuas ntxiv lub neej kev pabcuam ntawm lub cev abrasive.
(2) High purity: thaum sib tsoo pob porcelain khiav, nws yuav tsis tsim muaj kuab paug, yog li nws muaj peev xwm tswj tau siab purity thiab txhim kho kev ruaj ntseg ntawm kev sib tsoo.
(3) High density: siab ceev, siab hardness thiab siab sib tsoo, thiaj li txuag lub sij hawm sib tsoo thiab nthuav qhov chaw ntawm kev sib tsoo, tuaj yeem txhim kho kev sib tsoo zoo.
(4) siab zog, kub tsis kam (kub tsis kam ntawm 1000 ℃, 1000 ℃ los yog ntau dua rau lub sijhawm ntev yog yooj yim los lo), kev kub siab tsis kam, acid thiab alkali corrosion kuj (tsis yog oxalic acid, sulfuric acid, hydrochloric). acid, aqua Wang thiab lwm qhov chaw), thermal shock stability, ruaj khov tshuaj
Khoom zoo
Lub tuam txhab xaiv roob aluminium alumina ua cov khoom siv raw, nrog cov purity siab, tsawg impurities thiab ruaj khov zoo. Siv Kanban ntau lawm, tag nrho cov txheej txheem tsim khoom tuaj yeem tswj tau thiab taug qab. Txhua batch ntawm cov khoom raug xaiv rau kev soj ntsuam nruj, txheej txheem thiab cov txiaj ntsig kev sim los xyuas kom meej qhov ruaj khov ntawm cov khoom tiav, zoo heev. Xyuas kom muaj cov ntsiab lus alumina, xyuas kom tsis muaj hnav, khoom txaus, khoom xa tuaj raws sijhawm thiab yooj yim.
TECHNICAL FILE
| Junda ceramic pob | ||
| Yam khoom | Specification | |
| AI2O 3 | 92% | 95% |
| SiO 2 | 4.51% | 2.80% |
| Fe2O 3 | 0.01% | 0.01% |
| Roundness | 95% | 95% |
| Kev hnav sai sai | ≤0.9g / kg.h | ≤0.7g / kg.h |
| Xim | Dawb | Dawb |
| Compression zog | ≥2000 Mpa | ≥2250 Mpa |
| Hardness | 9 hmo | 9 hmo |
| Kev nqus dej | ≤0.01% | ≤0.01% |
| Sib npaug hnav poob | ≤0.001% | ≤ 0.0008% |
| HS code | 69091200 ib | |
| Kev ceev ceev | 3.68g / cm³ | 3.7g / cm³ |
| Dimension | ||
| Moulding Rolling | Φ 0.5mm Φ 1.0mm Φ 2.0mm Φ 3.0mm Φ 4.0mm Φ 5.0mm Φ 6.0mm Φ 8.0mm Φ 10mm Φ 13mm Φ 15mm Φ 20mm | |
| Isostatic nias | Φ 25mm Φ 30mm Φ 35mm Φ 40mm Φ 45mm Φ 50mm Φ 60mm Φ 70mm Φ 80mm Φ 90mm | |
