Sab saum toj Zoo AISI52100 GCr15 4mm G10-G1000 Chrome Steel Pob rau Motorcycle / Tsheb kauj vab / Cov Kabmob Pob
Khoom piav qhia
Vim nws cov yam ntxwv tshwj xeeb xws li hardness zoo, siab hnav tsis kam, zoo nto tiav thiab tsis tshua muaj siab kam rau ua, qis-alloy martensitic AISI 52100 chromium steel yog siv rau kev tsim cov bearings thiab li qub.
Cov cheeb tsam ntawm daim ntawv thov
Rolling bearing balls, Valves, fast connectors, precision pob bearings, tsheb Cheebtsam (brakes, steering, kis), tsheb kauj vab, aerosol kaus poom, tub rau khoom qhia, tshuab cuab yeej, xauv mechanisms, conveyor siv, swb khau, cwjmem, twj, rotating log, ntsuas ntsuas, pob ntsia hlau, cov khoom siv hluav taws xob hauv tsev.

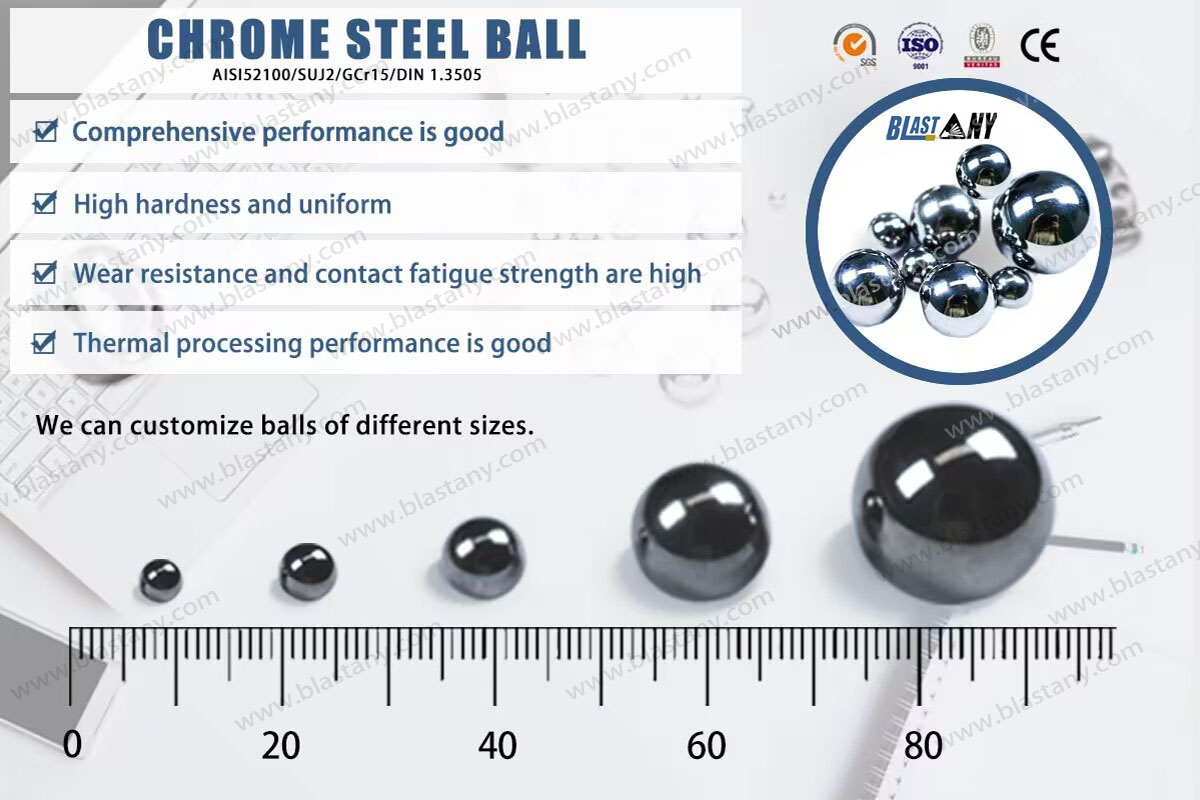

parameter lis
| Chrome Hlau Pob | |
| Khoom siv | AISI52100/SUJ2/GCr15/DIN 1.3505 |
| Qhov Loj | 0.8mm-50.8 hli |
| Qib | G10-G1000 |
| Hardness | HRC: 60 ~ 66 |
| Nta | (1) Kev ua tau zoo yog qhov zoo. (2) siab hardness thiab uniform. (3) Hnav tsis kam thiab tiv taus qaug zog yog siab. (4) Thermal processing kev ua tau zoo. |
| Daim ntawv thov | Chrome bearing pob tsuas yog siv rau kev tsim cov pob steel, cov menyuam thiab cov bushings ntawm cov tsav tsheb xws li cov cav sib xyaw nrog, hluav taws xob locomotives, cov cuab yeej siv tshuab, tsheb laij teb, cov khoom siv dov, drilling rigs, tsheb ciav hlau thiab mining machinery. |
| Tshuaj muaj pes tsawg leeg | ||||||
| 5 2100 | C | Si | Mn | P | S | Cr |
| 0.95-1.05 Nws | 0.15-0.35 dr hab | 0.25-0.45 Nws | 0-0.025 Nws | 0-0.020 Nws | 1.40-1.65 Nws | |

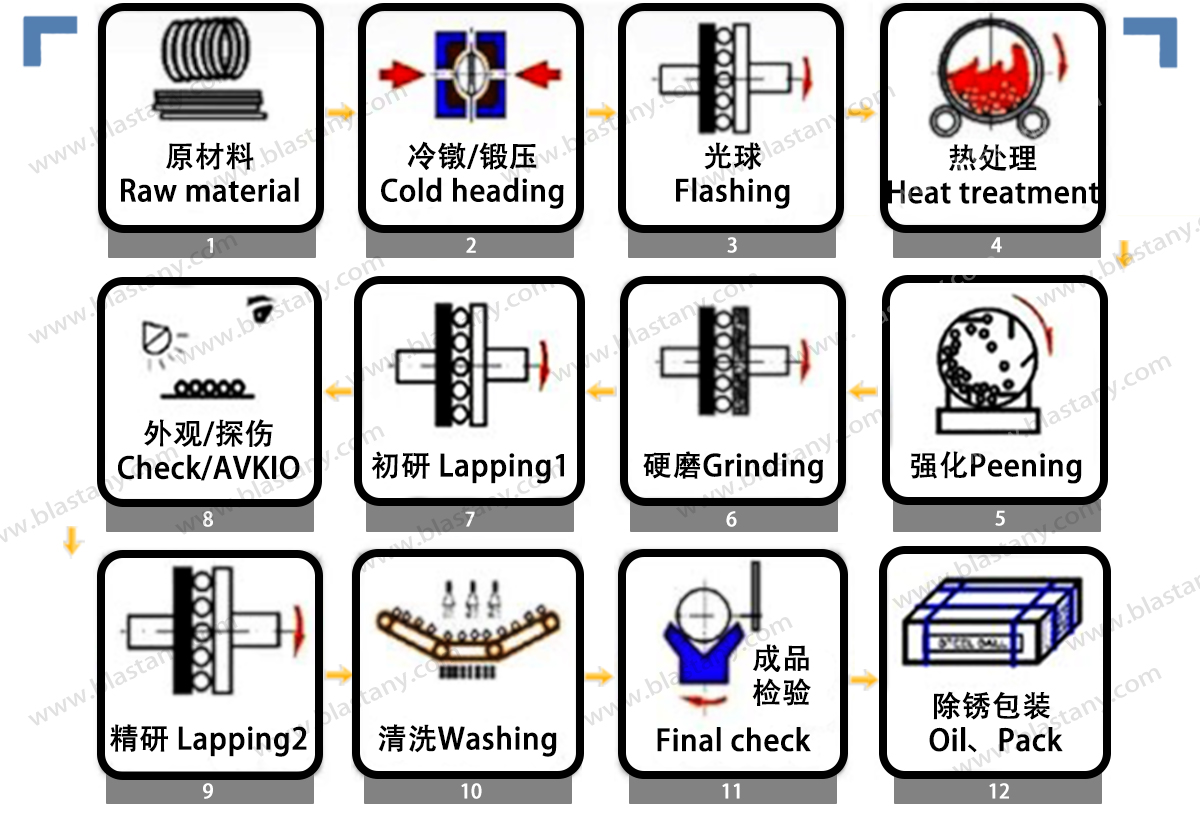

Cov txheej txheem ntau lawm
Kev tshuaj xyuas raw khoom
Raw khoom tuaj nyob rau hauv daim ntawv hlau. Ua ntej, cov khoom siv raw yog pom los ntawm cov neeg soj ntsuam zoo los txiav txim siab seb qhov zoo li cas thiab yog tias muaj cov khoom siv tsis raug. Thib ob, txheeb xyuas lub cheeb thiab tshuaj xyuas cov ntaub ntawv pov thawj raw khoom.
Txias taub hau
Lub tshuab txias taub hau txiav ib lub sijhawm ntev ntawm cov khoom siv hlau rau hauv ib lub cylindrical slugs. Tom qab ntawd, ob lub hemispherical halves ntawm lub taub hau tuag tsim cov slug rau hauv ib lub voj voog zoo nkauj. Cov txheej txheem forging no yog ua nyob rau hauv chav tsev kub thiab me ntsis ntawm cov khoom siv ntxiv yog siv los xyuas kom meej tias cov kab noj hniav tuag tag. Lub taub hau txias yog ua nyob rau hauv siab heev, nrog rau qhov nruab nrab tshaj tawm ntawm ib lub pob loj ib ob. Cov pob me me yog mus rau ntawm qhov ceev ntawm ob mus rau plaub lub pob ib ob.
Flashing
Thaum lub sijhawm txheej txheem no, cov khoom siv ntau dhau tsim nyob ib puag ncig lub pob yuav raug tshem tawm. Cov pob tau dhau ob peb zaug ntawm ob lub grooved cam khwb cia hlau daim hlau tshem tawm me me ntawm cov khoom siv ntau dhau thaum lawv yob.
Kev kho cua sov
Tom qab ntawd cov khoom yuav tsum tau kho cua sov siv cov txheej txheem quenching thiab tempering.Ib lub qhov cub tawg yog siv los xyuas kom meej tias txhua qhov chaw dais tib yam. Tom qab thawj zaug kev kho cua sov, cov khoom yog immersed nyob rau hauv ib tug roj reservoir. Qhov no ceev ceev txias (roj quenching) tsim martensite, ib theem steel uas yog yus muaj los ntawm siab hardness thiab superior hnav zog. Tom qab tempering ua haujlwm ntxiv txo qis hauv kev ntxhov siab kom txog thaum cov bearings 'qhov kawg kev txwv hardness tau mus txog.
Sib tsoo
Kev sib tsoo yog ua ob qho tib si ua ntej thiab tom qab kev kho cua sov. Finish Grinding (tseem hu ua Hard Grinding) coj lub pob los ze zog rau nws qhov kev xav tau kawg.Qib ntawm precision hlau pobyog ib qho kev ntsuas ntawm nws tag nrho precision; tus lej qis dua, qhov tseeb dua yog pob. Pob qib encompasses txoj kab uas hla kam rau ua, roundness (sphericity) thiab nto roughness kuj hu ua nto tiav. Precision pob manufacturing yog ib qho kev ua haujlwm batch. Ntau qhov loj yog txiav txim siab los ntawm qhov loj ntawm cov tshuab siv rau kev sib tsoo thiab lapping.
Lapping
Lapping zoo ib yam li kev sib tsoo tab sis muaj qhov txo qis ntawm cov khoom tshem tawm. Lapping yog ua tiav siv ob daim hlau phenolic thiab ib qho zoo heev abrasive slurry xws li pob zeb diamond plua plav. Qhov kev tsim khoom kawg no ua kom zoo dua qhov roughness. Lapping yog ua rau lub hom phiaj ntawm high-precision los yog super-precision pob qib.
Ntxuav
Kev ua haujlwm tu tom qab ntawd tshem tawm cov kua dej ua haujlwm thiab cov khoom seem abrasive los ntawm cov txheej txheem tsim khoom. Cov neeg siv khoom uas thov kom muaj kev tu kom nruj dua, xws li cov hauv kev lag luam microelectronics, kev kho mob lossis kev lag luam zaub mov, tuaj yeem siv Hartford Technologies ntau dua kev xaiv tu.
Kev tshuaj xyuas qhov muag
Tom qab thawj txheej txheem tsim khoom, txhua qhov ntau ntawm cov pob steel hlau tau dhau los ua ntau yam kev tswj xyuas zoo. Kev tshuaj xyuas qhov muag yog ua los xyuas qhov tsis xws luag xws li xeb lossis av.
Roller Gauging
Cov menyuam gauging yog 100% cov txheej txheem kev txheeb xyuas uas sib cais ob qho tib si hauv qab-loj thiab dhau-loj precision steel npas. Thov tshawb xyuas peb qhov sib caisvideo ntawm cov txheej txheem kev ntsuas cov menyuam.
Kev Tswj Xyuas Zoo
Txhua lub npas precision raug tshuaj xyuas kom ntseeg tau tias qib yuav tsum tau ua rau txoj kab uas hla kam rau ua, roundness thiab nto roughness. Thaum lub sij hawm tus txheej txheem no, lwm yam tseem ceeb yam ntxwv xws li hardness, thiab tej yam uas yuav tsum tau pom kuj raug soj ntsuam.
