28 nkas loos abrasive tsis siv neeg rov qab lub voj voog sandblaster
Product Description
JundaJD400DA-28 nkas loos sandblasting lauj kaub, ua-hauv lub tshuab nqus tsev abrasive rov qab, tuaj yeem siv cov pa abrasives xws li garnet xuab zeb, xim av corundum, iav hlaws, thiab lwm yam, ua-hauv lub tshuab nqus tsev rov qab thiab plua plav lim, tuaj yeem rov ua dua abrasive.
Daim ntawv thov teb
1, movable xuab zeb cia tank, rear log tsheb yooj yim.
2, built-in rov qab lub tshuab nqus tsev vacuum thiab lub tshuab nqus tsev lim caij
3, tuaj yeem rov ua dua abrasive, txo tus nqi ntawm kev tshem tawm xeb.
Khoom siv
Feem ntau yog siv rau txhua yam steel phaj xeb tshem tawm, steel qauv xeb tshem tawm, nkoj refurbishment, tsheb refurbishment, anti-corrosion engineering, roj pipeline anti-xeb tshem tawm, shipyard xeb tshem tawm, engineering tsheb
Kev kho dua tshiab, cov khoom siv kho tshuab kho dua tshiab, hlau pwm nto sandblasting.
Cov lus qhia ua haujlwm thiab ceev faj
1. Yog hais tias cov khoom tiv thaiv txhuam kis tau tus mob tsis nyob rau hauv txoj hauj lwm zoo, muab tso rau tam sim no.
2. Teem lub tshuab cua compressor rau 8 kg quab yuam / square centimeter.
(Ntau lossis tsawg dua, nyob ntawm qhov chaw yuav tsum tau kho)
3. Txuas cov yeeb nkab cua txuas mus rau lub tshuab cua inlet connector nyob ntawm tus kov.
4. Txuas lub hwj chim cable rau lub hwj chim mov.
5. Teem rab phom ntawm qhov chaw kom huv si thiab tig qhov hloov mus rau sab saum toj ntawm lub tshuab nqus tsev mus rau qhov chaw qhib.
6,
Tuav rab phom ntawm ib txhais tes thiab txhuam txhuam hauv lwm qhov. Lus Cim: Tsis txhob siv lub zog los ntawm kev taw tes txhuam ntawm qhov chaw kho! Kev ua haujlwm ntawm cov txhuam hniav tsuas yog tiv thaiv cov xuab zeb pov tseg, thiab tom qab ntawd rau kev sib tsoo
Cov khoom yog khaws cia rau hauv lub tshuab nqus tsev kaw kom ua tiav recirculation. Txhuam tsis xav tau los ua lub luag haujlwm pabcuam hauv kev ua haujlwm puas.
7. Ob txhais tes yuav tsum txav mus rau qhov kev taw qhia ntawm kev tshem tawm xeb lossis ua ntej pleev xim ua haujlwm.
8. Koj tuaj yeem hloov qhov loj ntawm lub dav hlau los ntawm kev ncua lossis luv lub nozzle nrog lub ntsuas phoo.
9, tawv txhuam tuaj yeem siv rau dav hlau, tuaj yeem siv rau lub kaum sab xis, kaum. Ua ntej koj pib, kis cov bristles tawm kom lawv tsis txhob npog cov tshuaj tsuag hauv cov txhuam hniav.
(Abrasives hnav cov bristles)
. Ntawm ntug ntawm lub qhov rooj tsheb, peb xav kom koj qhwv cov plaub hau nruj ncig ntawm ntug ntawm lub qhov rooj kom lub tshuab nqus tsev zoo thiab muaj kev tiv thaiv zoo.
10. Tom qab txhua qhov kev ua haujlwm, tshem tawm lub tshuab nqus tsev vacuum thiab flick tawm cov plua plav ntawm cov khoom lim. Tom qab ib teev ntawm kev ua haujlwm tas mus li, tshem lub tshuab nqus tsev thiab siv DC cua lossis lub tshuab nqus tsev
Tshuab tawm cov hmoov av.
11. Thaum txau ntawm lub kaum sab xis 90 degree, kho cov phom ntawm lub kaum sab xis 45 degree kom ncav cuag qhov tob. Txav rab phom maj mam txav mus rau hauv lub voj voog kom ua tiav cov nyhuv. Tom qab sandblasting, loosen ob lub clamps thiab khoob
Plua plav sau cov khoom lim thiab khaws cov abrasive hauv txoj kev qhuav.
TECHNICAL FILE
(Tag nrhoduabntawm no yog rau siv xwb, Cov lus piav qhia yuav tsum yeej.)
| Junda 28 nkas loos tsis siv neeg rov siv duasandblasting lauj kaub | |
| Qauv | JD400 DA |
| Qhov ntev | 1100×400×420 hli |
| Tank loj | 380 x 1040 mm diam |
| Xuab zeb blasting siab | 0.6-0.8Mpa |
| Txhawb nqa cua compressor | 7.5 KW thiab siab dua |
| Sandblasting yeeb nkab | 3m |
| Muaj peev xwm | 100 liters / 28 nkas loos |
| Chaw thau khoom ntawm cov xuab zeb | 25 KG |
| Recycling tshuab | 1200 W |
| Inlet pob valve chaw nres nkoj | 1 qob |
| Lub tshuab nqus tsev lim | 1 qob |
| Roj hmab log | 1 qob |
| Kev siv abrasive | 36-320 # |
| Sand-blasting phom | 1 Tsis siv neeg rov qab sandblast phom |
| Xuab zeb suction raj | 1 qob |
| Qhov hnyav | 40 KG |
| Cov teeb meem xav tau kev saib xyuas | 1. Kev tiv thaiv tus kheej yuav tsum tau ua ua ntej ua haujlwm. 2. Tsis txhob siv lub siab ua haujlwm siab tshaj qhov tso cai. 3. Siv cov abrasives huv los tiv thaiv kev thaiv cov phom phom. 4. Cov cua siab hauv lub tank yuav tsum tau muab tshem tawm kom xoom tom qab ua haujlwm tiav |

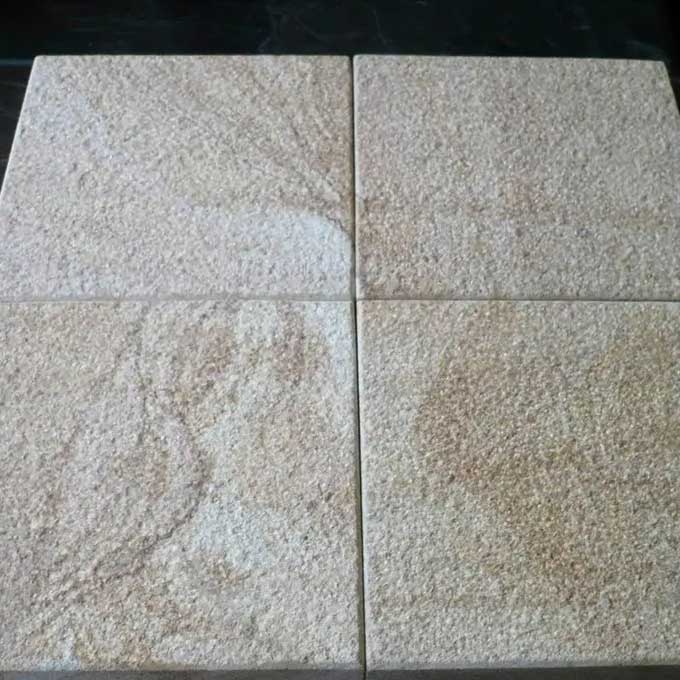

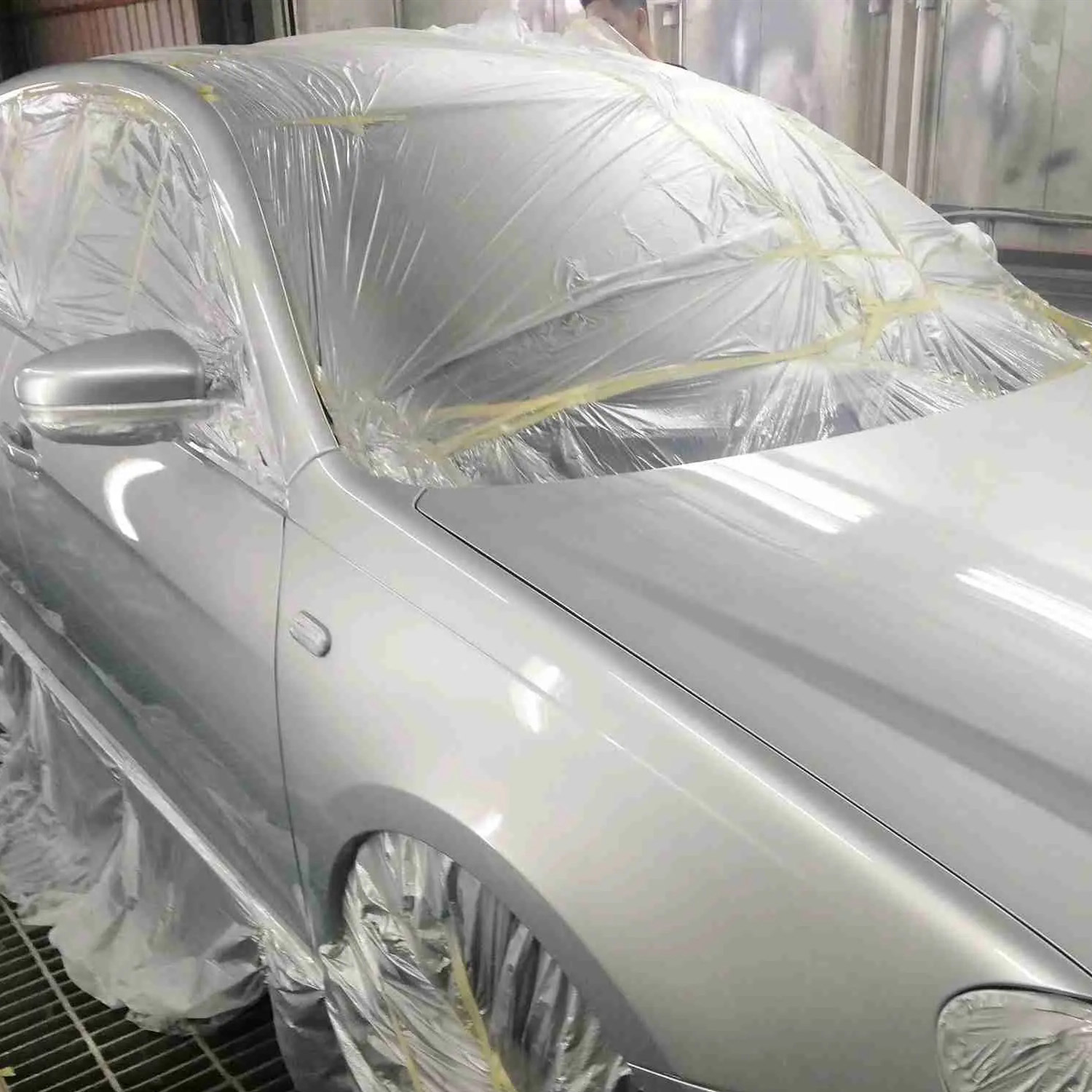

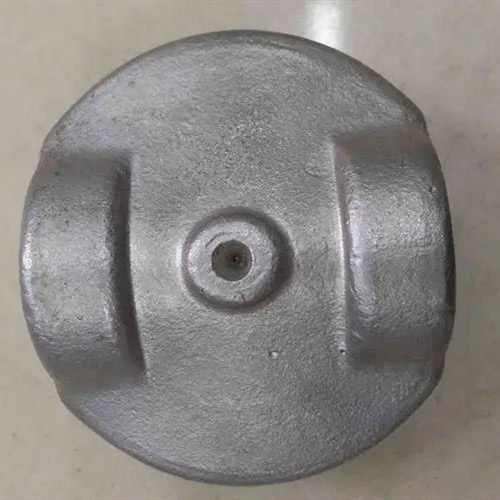

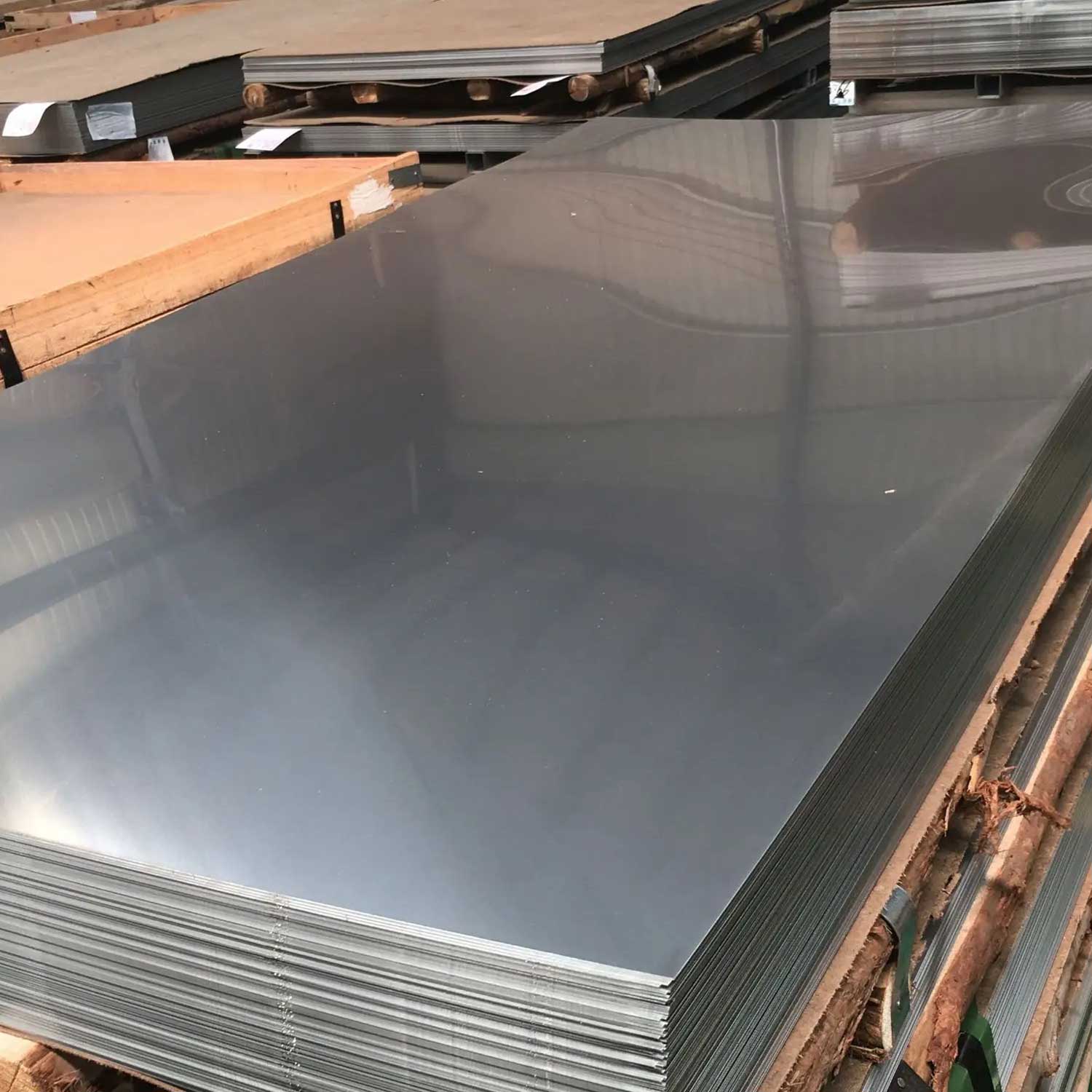

daim ntawv thov cheeb tsam
